Дънна платка Asus TUF GAMING Z790-PLUS WIFI D4, Z790, LGA1700, 4xDDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 4x M.2, 2x USB Type-C, ATX
изчерпан
Дънна платка Asus TUF GAMING Z790-PLUS WIFI D4, Z790, LGA1700, 4xDDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 4x M.2, 2x USB Type-C, ATX
Дънна платка Asus TUF GAMING Z790-PLUS WIFI D4, Z790, LGA1700, 4xDDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 4x M.2, 2x USB Type-C, ATX
Дънна платка Asus TUF GAMING Z790-PLUS WIFI D4, Z790, LGA1700, 4xDDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 4x M.2, 2x USB Type-C, ATX
Дънна платка Asus TUF GAMING Z790-PLUS WIFI D4, Z790, LGA1700, 4xDDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 4x M.2, 2x USB Type-C, ATX

Дънна платка Asus TUF GAMING Z790-PLUS WIFI D4, Z790, LGA1700, 4xDDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 4x M.2, 2x USB Type-C, ATX

SKU: TUF GAMING Z790-PLUS WIFI D4
ID: #24054

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost
CPU Socket: Intel LGA1700
Чипсет: Intel Z790
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Поддържана памет: DDR4
Честота памет: DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)
M.2 слот: 4x M.2 NVMe slots (Diskless)
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Вграден Bluetooth: Bluetooth V5.2
Wi-Fi Mодул: Да
Безжична мрежа: 802.11 ax Wi-Fi 6
HDMI: 1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Направи запитване

Описание

ASUS TUF GAMING Z790-PLUS WIFI D4 MB LGA1700 4xDIMM DDR4 4xM.2 4xSATA

Manufacturer ASUS
Manufacturer Part No 90MB1CR0-M0EAY0

General
Product Type Motherboard - ATX
Chipset Type Intel Z790
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALCS1220A
Compliant Standards High Definition Audio
LAN
Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity

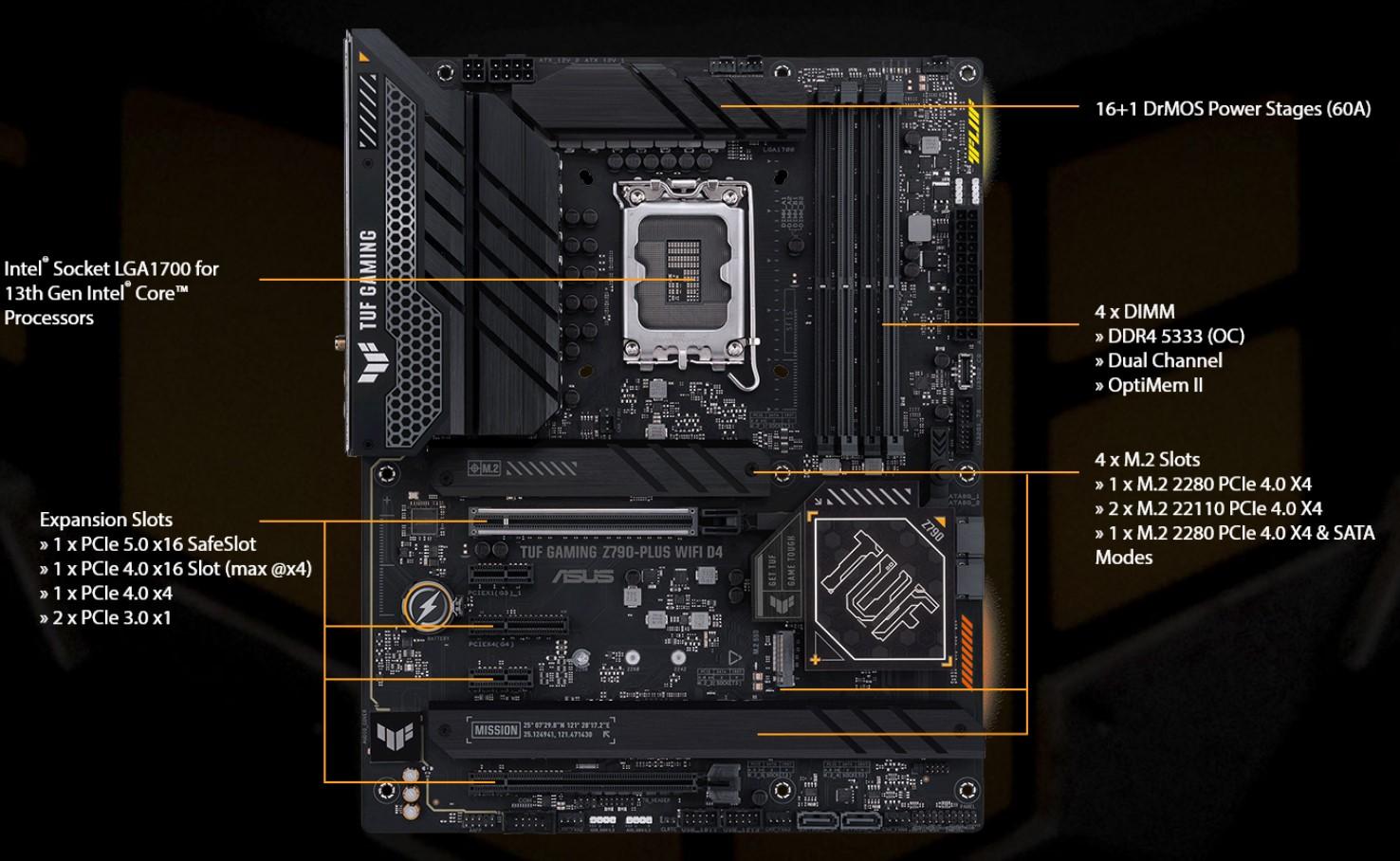

Expansion Slots 1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features Intel Rapid Storage Technology

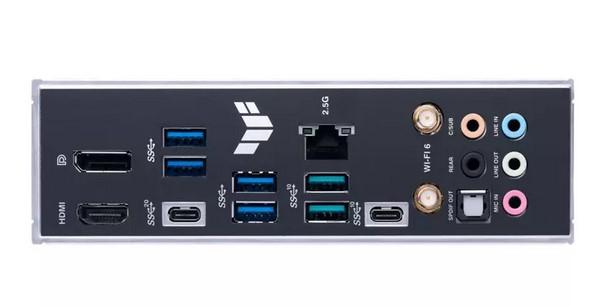

Interfaces 1 x DisplayPort
1 x HDMI
1 x USB-C 3.2 Gen2x2
2 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x aerial
1 x microphone - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x SPDIF out
Internal Interfaces 4 x USB 2.0 - header
1 x USB-C 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x Thunderbolt - header
1 x serial - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type AMI
BIOS Features UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Hardware Features Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, Dr.MOS MOSFET, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, 16+1 Phase Power Design, M.2 Q-Latch, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, 60A Power Stage
Miscellaneous
Included Accessories TUF stickers, ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, TUF certification card
Cables Included 2 x Serial ATA cable
Software Included ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers
Compliant Standards VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Width 30.5 cm
Depth 24.4 cm
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Technical data provided by third party. We assume no liability for errors within these data.
