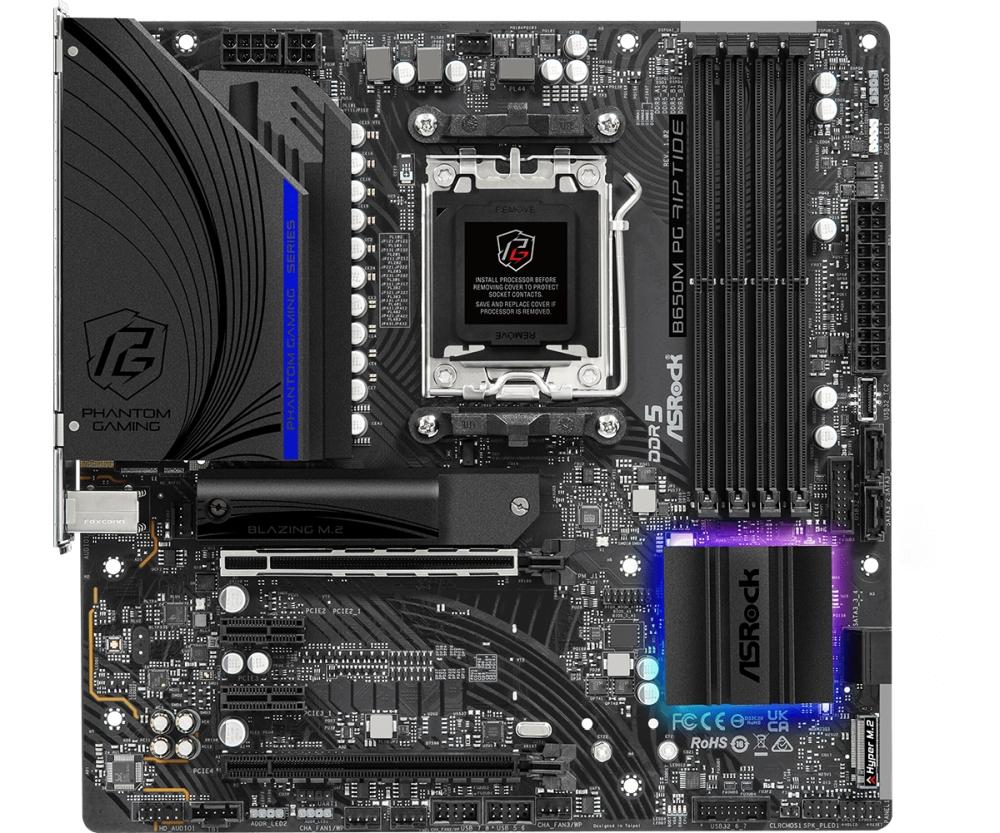

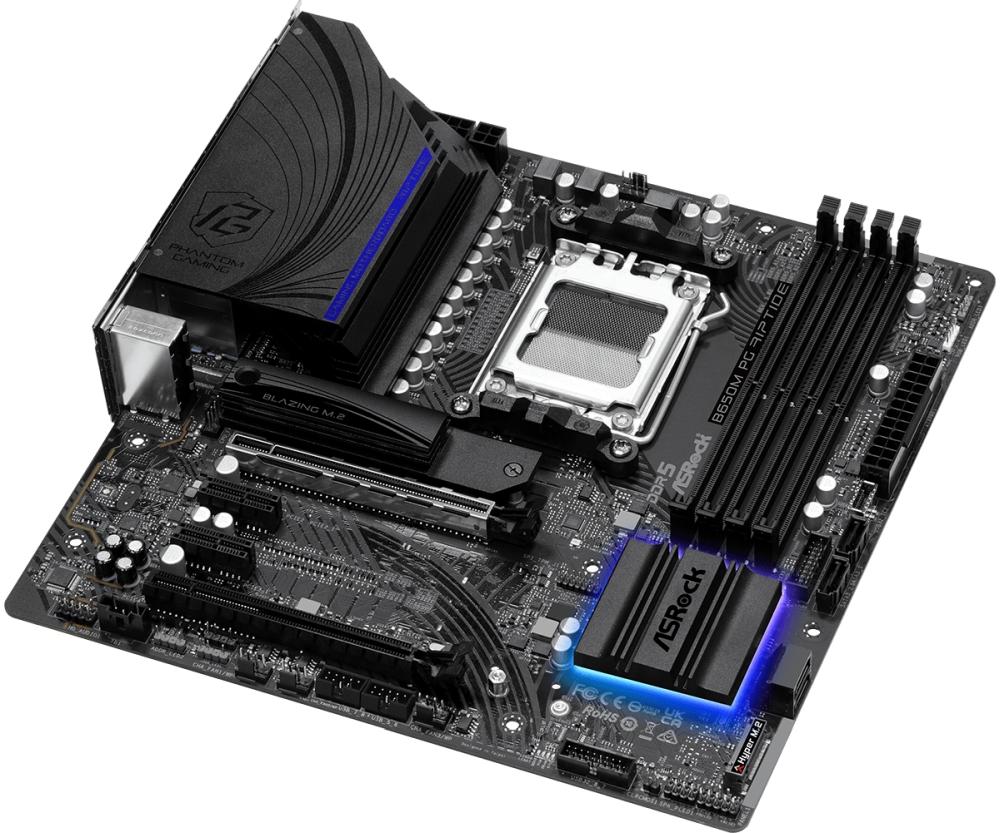

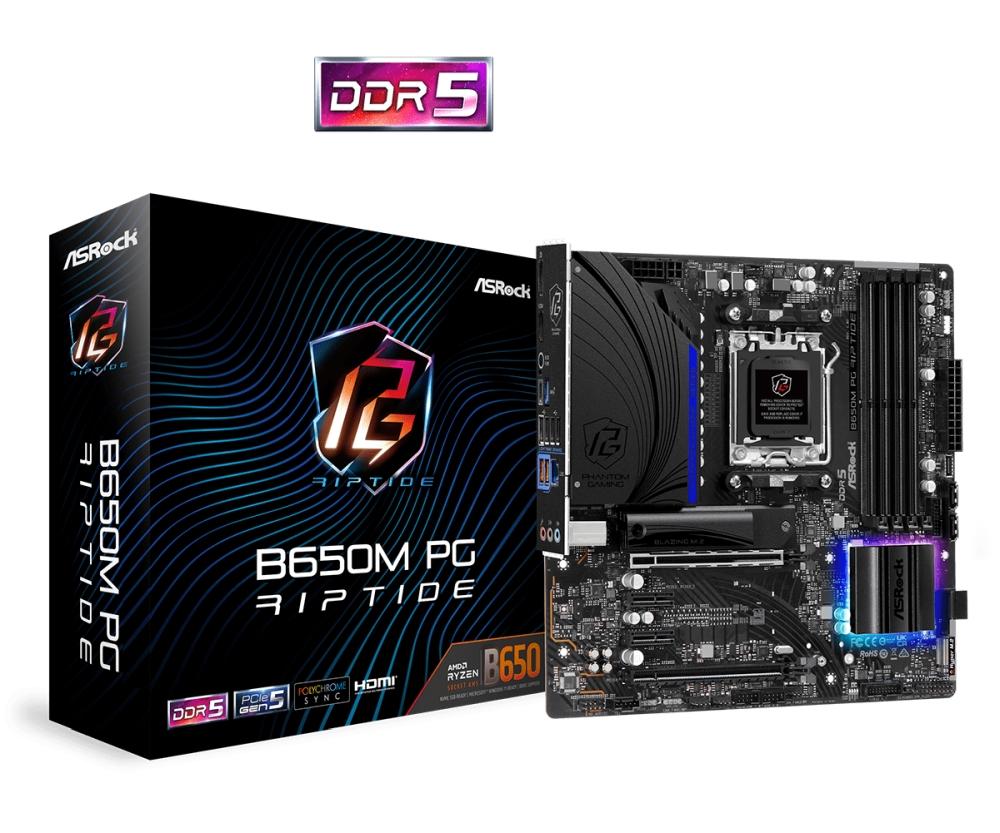

Дънна платка ASrock B650M PG RIPTIDE, B650, AM5, DDR5, PCIe 4.0, 2x M.2, 4x SATA 6Gb/s, HDMI/DP, Micro ATX

Дънна платка ASrock B650M PG RIPTIDE, B650, AM5, DDR5, PCIe 4.0, 2x M.2, 4x SATA 6Gb/s, HDMI/DP, Micro ATX

SKU: 90-MXBJ90-A0UAYZ / B650M PG RIPTIDE
ID: #29774
Цена: 367,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD Socket AM5 Ryzen™ 7000 Series
CPU Socket: AMD AM5
Чипсет: AMD B650
Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB
Памет, слотове: 4 x DDR5 DIMM Slots
Поддържана памет: DDR5
M.2 слот: Не
Graphics технология: Няма
Мрежа: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG
Wi-Fi Mодул: Не
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • Chipset
    - AMD B650
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
    - Max. capacity of system memory: 192GB
    - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    *Please refer to Memory Support List for more information.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Phantom Gaming LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
    Chipset:
    - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)

    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2 Type-C (Rear)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 1 x USB 3.2 Gen1 Type-C (Front)
    - 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
    - 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x 4 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

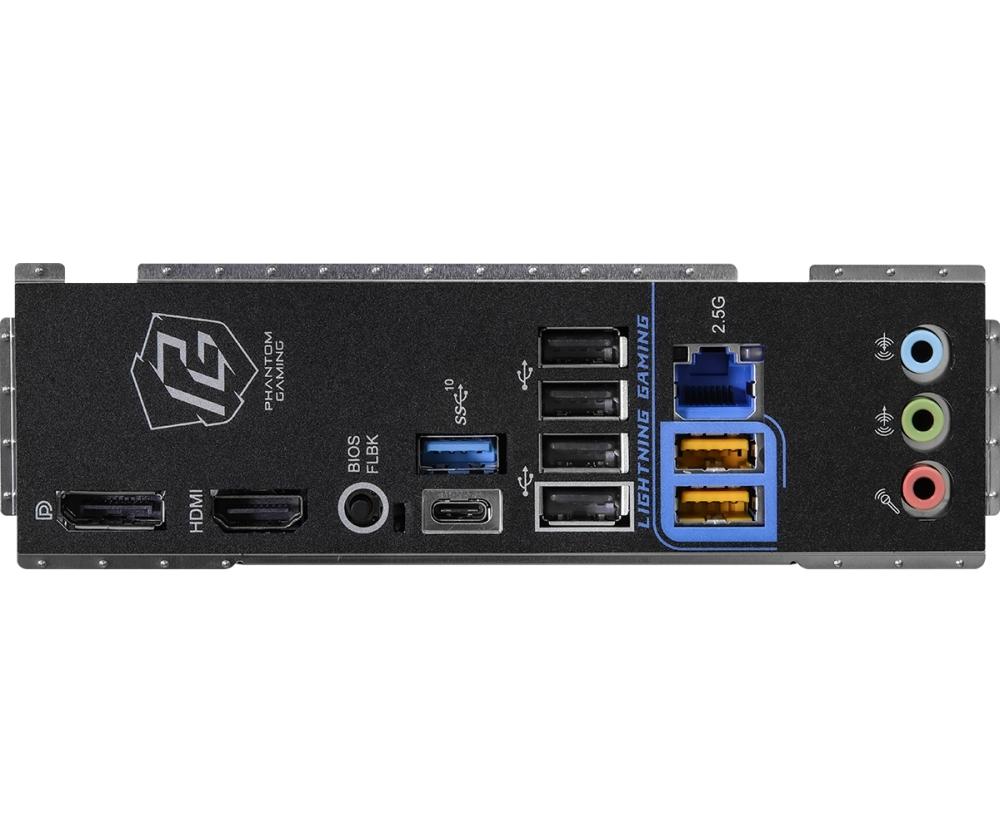

  • Rear Panel I/O
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
    - 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - 2oz Copper PCB
