Дънна платка ASUS PRIME H610M-E D4-CSM, H610, DDR4, PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, D-Sub, HDMIDP, mATX

SKU: PRIME H610M-E / 90MB19N0-M1EAYC

ID: #34833

Цена: 241,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Чипсет: Intel H610

Максимален капацитет RAM памет: 64 GB

Памет, слотове: 2

Поддържана памет: DDR4

M.2 слот: 1x M.2 slot

Graphics технология: Няма

Мрежа: 10/100/1000 Mbps

Wi-Fi Mодул: Не

HDMI: 1

DisplayPort: 1

VGA: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

ASUS PRIME H610M-E D4-CSM LGA1700 mATX MB 2xDDR4 4xSATA 2xM.2


Manufacturer	ASUS
Manufacturer Part No	90MB19N0-M1EAYC

Marketing Description
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Product Features
Flexibility Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-around energy efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced tuning for serious tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Cooling Prime H610 series are engineered with heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Multiple temperature sources Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. Performance Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Dual M.2 slots (up to 32 Gbps) PRIME H610M-E D4-CSM offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. PCIe 4.0 Prime H610 motherboards are designed specifically for 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. Customization Prime H610 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
General
Product Type	Motherboard - micro ATX
Chipset Type	Intel H610
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	64 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN
Network Interfaces	Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 3.0 -connectors: 2 x M.2

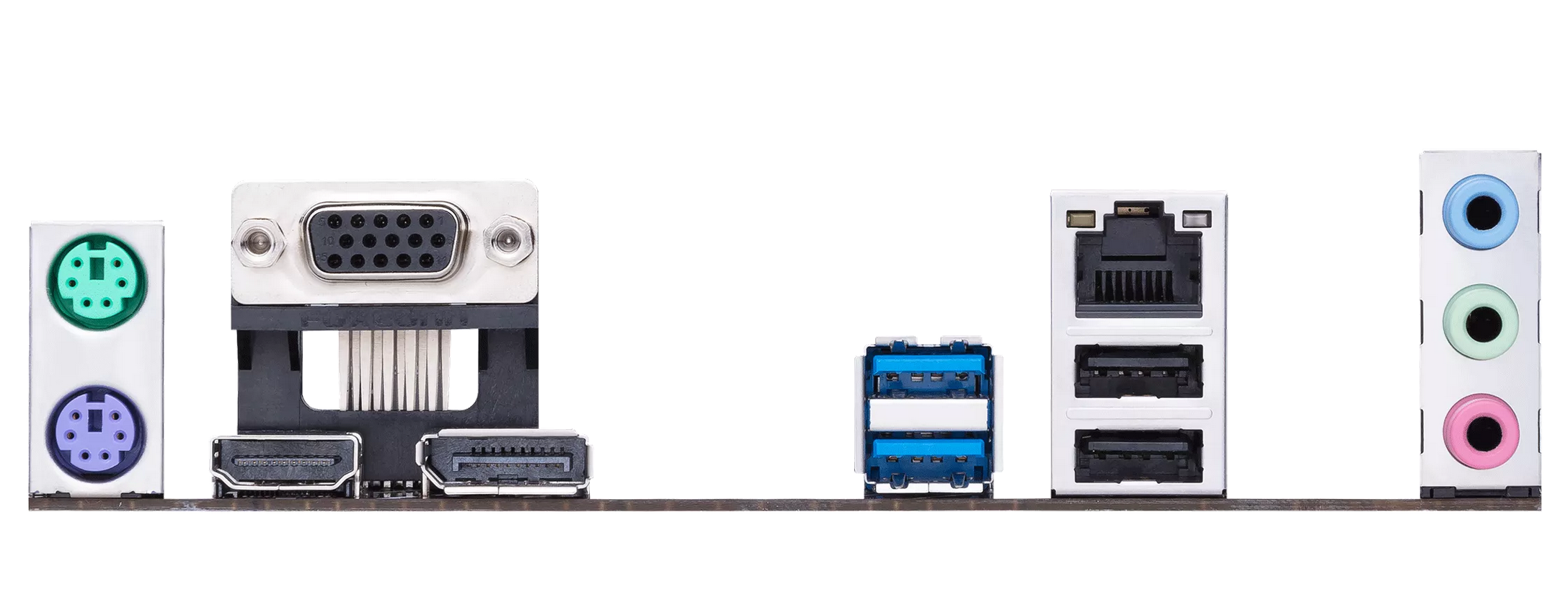

Interfaces	1 x HDMI 1 x DisplayPort 1 x VGA 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard 1 x PS/2 mouse 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack
Internal Interfaces	2 x USB 2.0 - header 1 x USB 3.2 Gen 1 - header 1 x SPDIF out - header 1 x speaker - header 1 x audio - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on PME
Hardware Features	ASUS Q-Design, Q-DIMM, Q-Slot, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, Q-LED Core
Miscellaneous

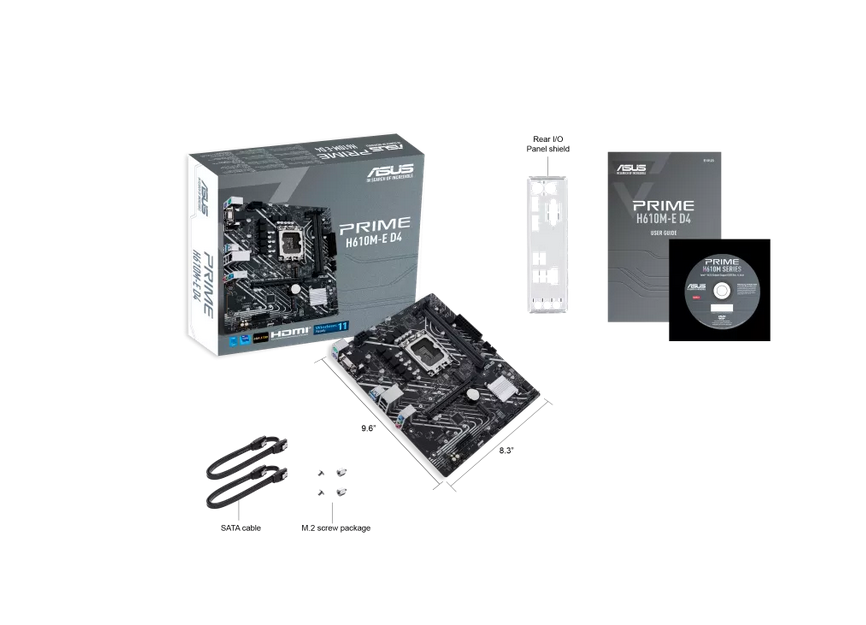

Included Accessories	I/O back plate, ACC Express Activation Key Card, M.2 screw package
Cables Included	2 x Serial ATA cable
Software Included	ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial), ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 2+
Width	24.4 cm
Depth	21.1 cm
