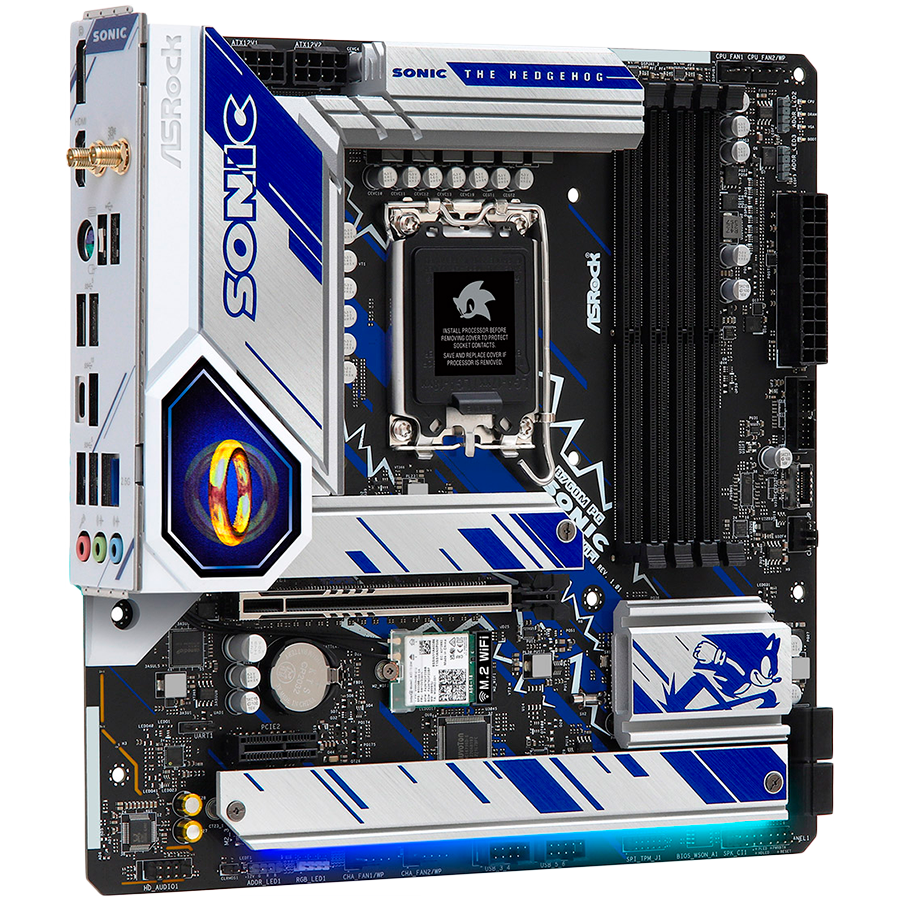

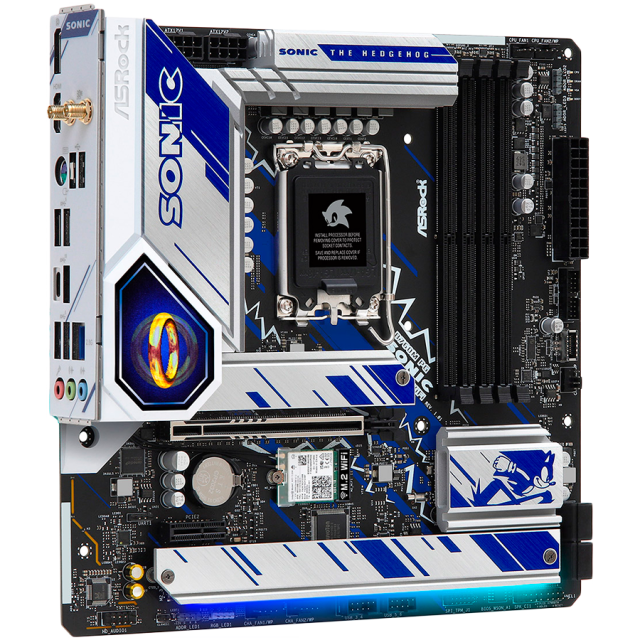

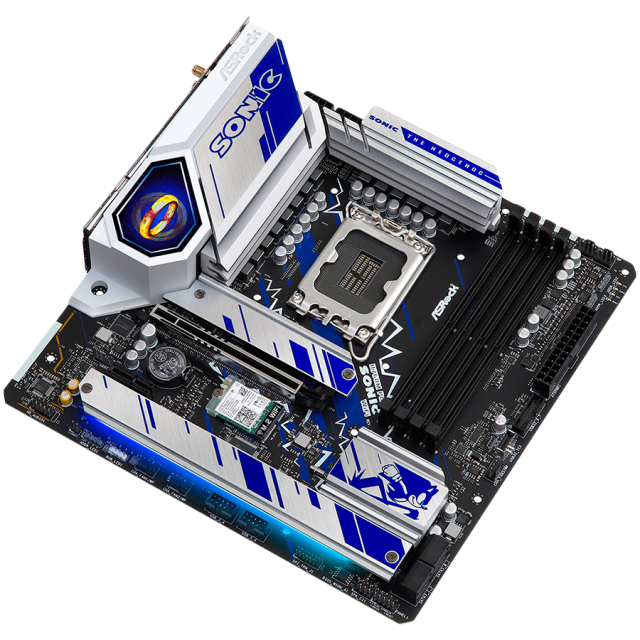

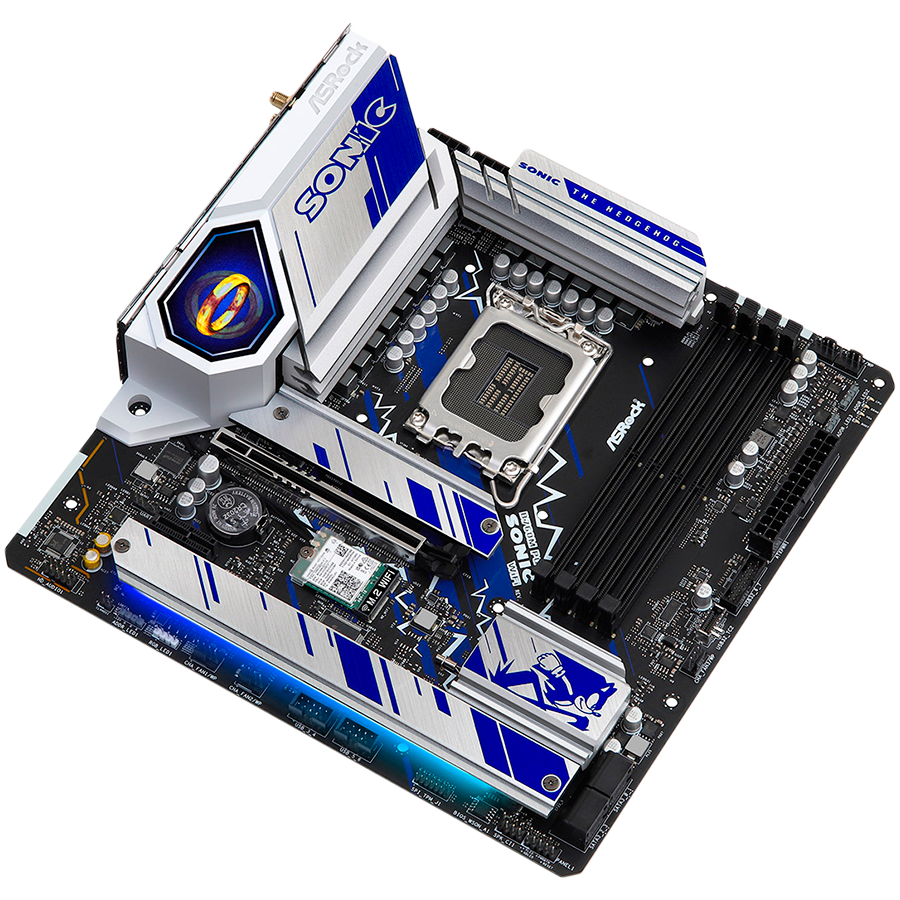

Дънна платка ASROCK B760M PG SONIC WiFi, LGA1700, 4x DDR5, 4x SATAIII, 3x M.2, 1x HDMI, 1x DisplayPort, mATX
Дънна платка ASROCK B760M PG SONIC WiFi, LGA1700, 4x DDR5, 4x SATAIII, 3x M.2, 1x HDMI, 1x DisplayPort, mATX
Дънна платка ASROCK B760M PG SONIC WiFi, LGA1700, 4x DDR5, 4x SATAIII, 3x M.2, 1x HDMI, 1x DisplayPort, mATX
Дънна платка ASROCK B760M PG SONIC WiFi, LGA1700, 4x DDR5, 4x SATAIII, 3x M.2, 1x HDMI, 1x DisplayPort, mATX
Дънна платка ASROCK B760M PG SONIC WiFi, LGA1700, 4x DDR5, 4x SATAIII, 3x M.2, 1x HDMI, 1x DisplayPort, mATX

Дънна платка ASROCK B760M PG SONIC WiFi, LGA1700, 4x DDR5, 4x SATAIII, 3x M.2, 1x HDMI, 1x DisplayPort, mATX

SKU: B760M PG SONIC WIFI
ID: #38814
Цена: 334,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 14th, 13th Gen & 12th Gen Intel® Core™
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB
Памет, слотове: 4
Поддържана памет: DDR5
M.2 слот: 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Да
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset
    - Intel® B760
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
    - Max. capacity of system memory: 192GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0

    *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
    1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
    2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
    2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12)
    - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Phantom Gaming LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Wireless LAN
    - 802.11ax Wi-Fi 6E Module
    - Supports IEEE 802.11a/b/g/n/ac/ax
    - Supports Dual-Band 2x2 with extended 6GHz band support*
    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth + High speed class II
    - Supports MU-MIMO

    *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)
    * All USB ports support ESD Protection
  • Connector
    - 1 x eDP Signal Connector
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

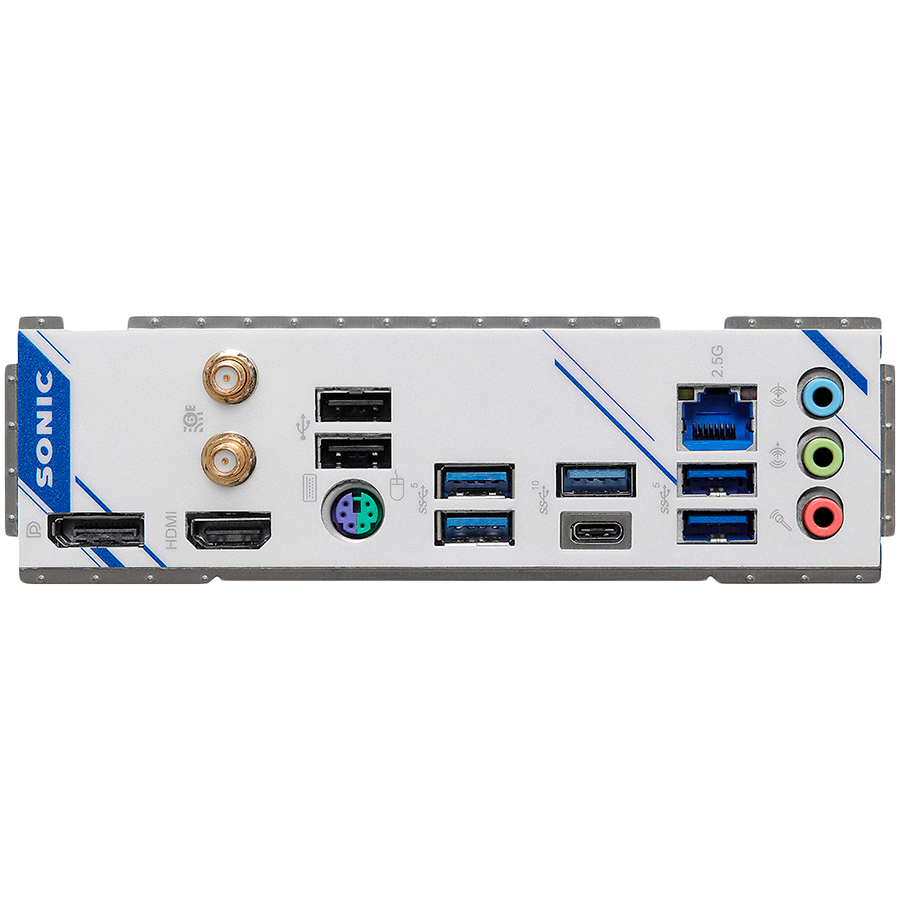

  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    - 4 x USB 3.2 Gen1 Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

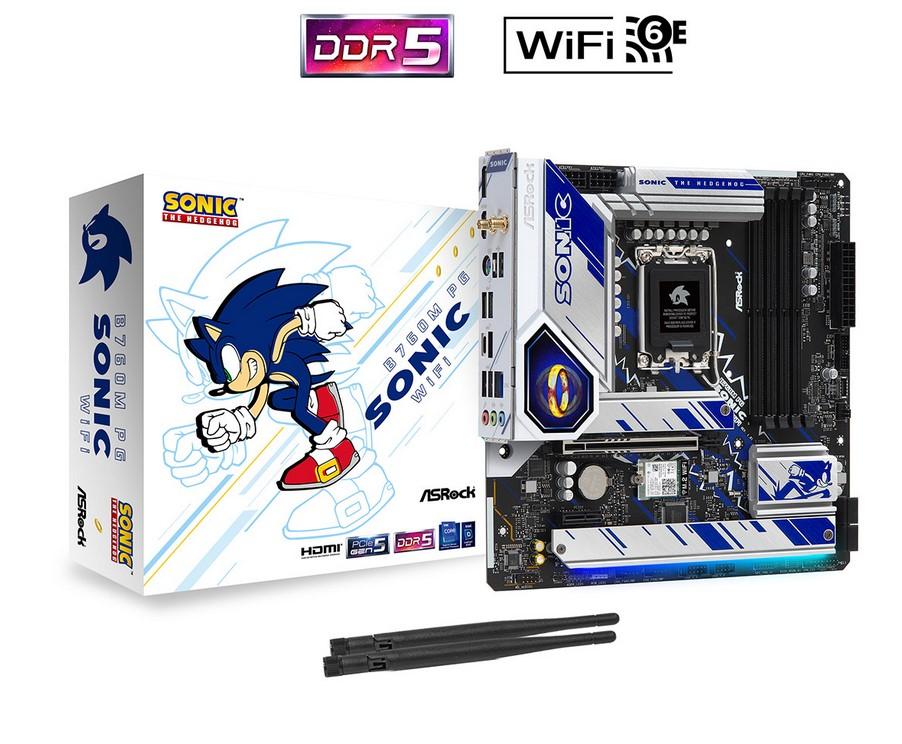

  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    - 3 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - 2oz Copper PCB
