| General |
| Product Type |

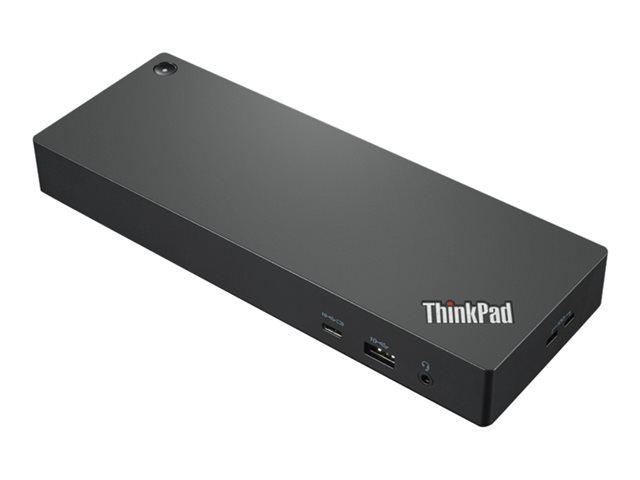

Docking station |
| Width |
22 cm |
| Depth |
8 cm |
| Height |
3 cm |
| Weight |
450 g |
| Enclosure Colour |
Black / red |
| Localisation |
Europe |
| Networking |
| Data Link Protocol |
Gigabit Ethernet |
| Expansion / Connectivity |
| Interfaces |
3 x USB 3.2 Gen 2 - 9 pin USB Type A
1 x USB 3.2 Gen 2 with Always-on charging - 9 pin USB Type A
1 x USB-C 3.2 Gen 2 with Always-on charging - 24 pin USB-C
1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x Thunderbolt 4 - 24 pin USB-C
2 x audio / video - DisplayPort - 20 pin DisplayPort
1 x audio / video - HDMI - 19 pin HDMI Type A
1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole |
| Miscellaneous |
| Cables Included |
1 x USB-C to USB-C cable - external |
| Features |
Security lock slot (cable lock sold separately) |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
NOM, FCC, cULus, ICE |
| Power |
| Power Device |
Power adapter |
| Power Provided |
135 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Dimensions & Weight (Shipping) |
| Shipping Width |
27 cm |
| Shipping Depth |
19.5 cm |
| Shipping Height |
8.5 cm |
| Shipping Weight |
1.2 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Compatibility Information |
| Designed For |
Lenovo ThinkBook 13s G4 IAP 21AR
Lenovo ThinkBook 13x G2 IAP 21AT
Lenovo ThinkPad E14 Gen 4 21E3, 21E4
Lenovo ThinkPad E15 Gen 4 21E6
Lenovo ThinkPad L13 Yoga Gen 3 21B5, 21B6
Lenovo ThinkPad L14 Gen 3 21C1, 21C2
Lenovo ThinkPad P15v Gen 3 21D8, 21D9
Lenovo ThinkPad T14 Gen 3 21AH
Lenovo ThinkPad T14s Gen 3 21BR, 21BS
Lenovo ThinkPad T15p Gen 3 21DA
Lenovo ThinkPad T16 Gen 1 21BV
Lenovo ThinkPad X1 Carbon Gen 10 21CB, 21CC
Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX
Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ
Lenovo ThinkPad X1 Nano Gen 2 21E8
Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0
Lenovo ThinkPad X1 Yoga Gen 7 21CD, 21CE
Lenovo ThinkPad X13 Gen 3 21BN
Lenovo ThinkPad X13 Yoga Gen 3 21AX |
