Докинг станция Lenovo ThinkPad Ultra Docking Station for T480, T580, L580, L480

SKU: 40AJ0135EU

ID: #11683

Характеристики

Видео интерфейс: 2 DisplayPort 1.4, 1 HDMI 2.0, 1 VGA

RJ-45: 10/1000 Gigabit Ethernet

Други: Key lock for notebook security

Захранване: 135 W

Гаранция (месеца): 12

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

LENOVO 40AJ0135EU ThinkPad ULTRA Dock Side Dock fo Thinkpad xx80 notebooks - 135W EU (P)


Manufacturer	LENOVO
Manufacturer Part No	40AJ0135EU

Marketing Description

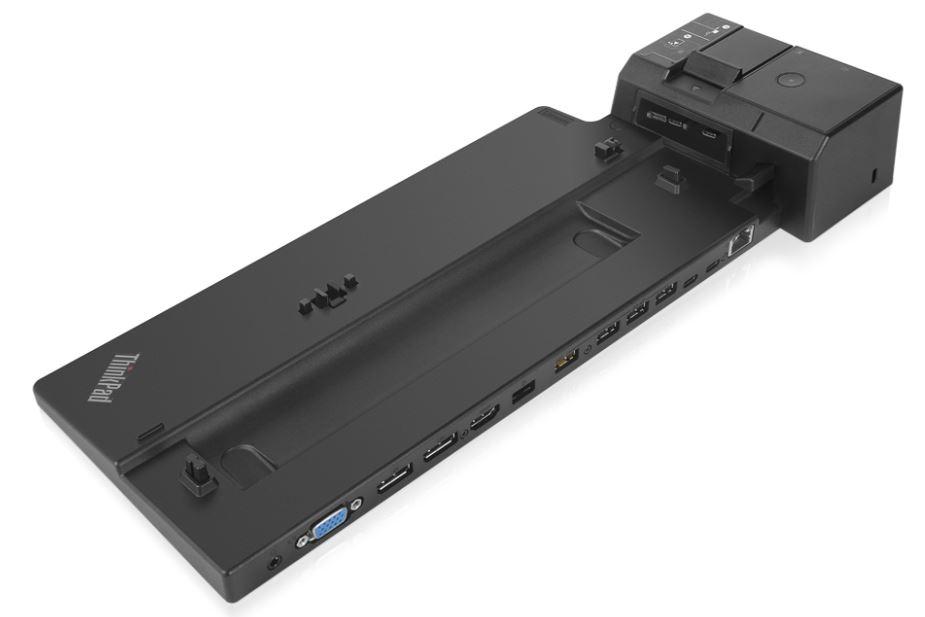

Lenovo ThinkPad Ultra Docking Station provides excellent docking experience for Large Enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make going mobile even easier. Designed for large enterprise environments, ThinkPad. Docking Stations support PXE book, Wake-on-LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly crafted and extensively tested, ThinkPad Docking Stations provide a seamless docking experience for professionals.
Product Features
Innovative side connection, exclusively for ThinkPad notebooks Designed with Enterprise IT in mind Upgraded performance
General
Product Type	Docking station
Width	37.8 cm
Depth	15.9 cm
Height	5.41 cm
Weight	810 g
Localisation	Korea, Europe
Video
Max Resolution Details	4096 x 2160 - 60 Hz (DisplayPort only) 4096 x 2160 - 60 Hz (HDMI only) 2048 x 1536 - 85 Hz (VGA only) 4096 x 2160@30Hz, 4096 x 2160@30Hz (DisplayPort and HDMI simultaneously) 4096 x 2160@30Hz, 4096 x 2160@30Hz (DisplayPort1 and DisplayPort2 simultaneously) 4096 x 2160@60Hz, 2048 x 1536@85Hz (DisplayPort and VGA simultaneously) 4096 x 2160@60Hz, 2048 x 1536@85Hz (HDMI and VGA simultaneously) 4096 x 2160@60Hz, 1920 x 1080@60Hz, 1920 x 1080@60Hz (DisplayPort1 and DisplayPort2 and HDMI simultaneously) 4096 x 2160@30Hz, 4096 x 2160@30Hz, 2048 x 1536@85Hz (DisplayPort and HDMI and VGA simultaneously)
Expansion / Connectivity

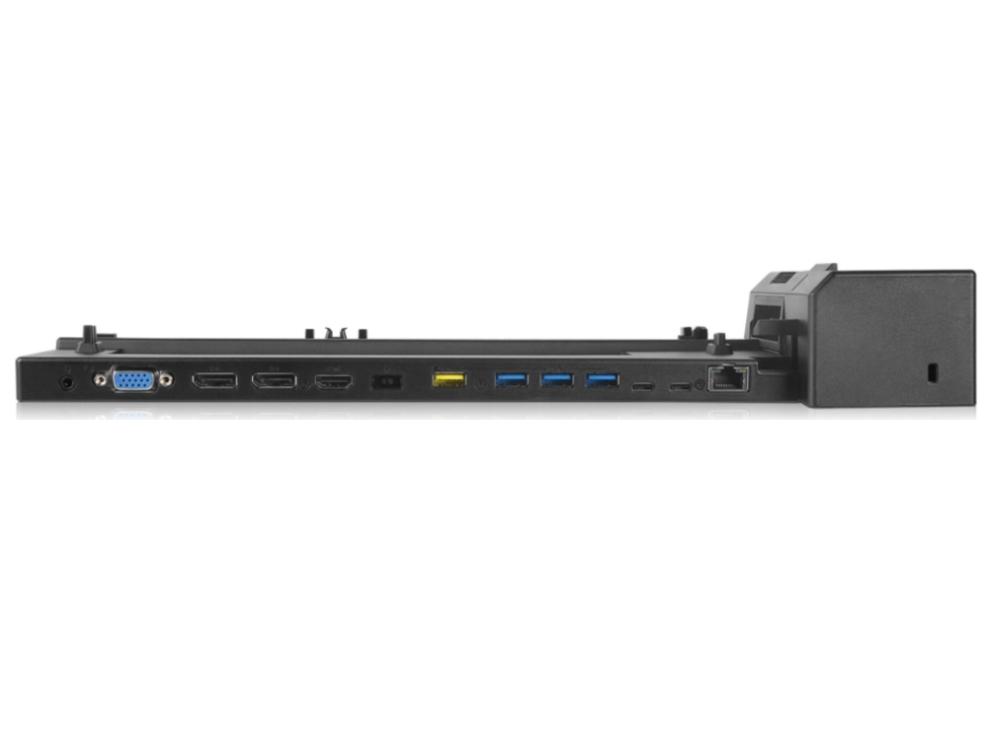

Interfaces	1 x USB 3.1 Gen 2 with Always-on charging 3 x USB 3.1 Gen 2 2 x USB-C 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x audio / video - DisplayPort - 20 pin DisplayPort 1 x audio / video - HDMI - 19 pin HDMI Type A 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 1 x docking / port replicator
Miscellaneous

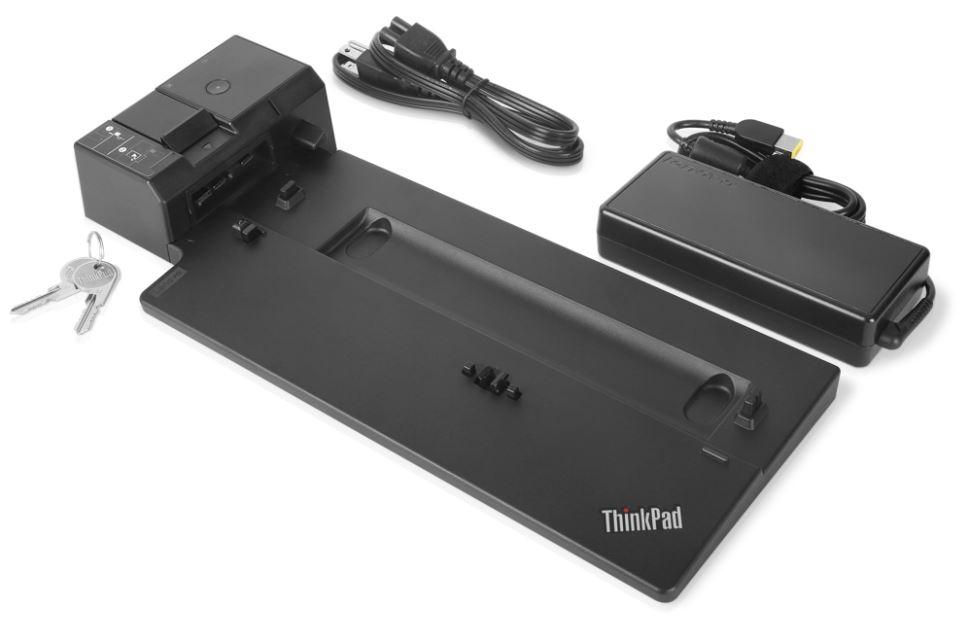

Included Accessories	2 x security keys
Features	Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through
Compliant Standards	UL, cUL, NOM, FCC, ICES
Power
Power Device	Power adapter
Power Provided	135 Watt
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Width	42.2 cm
Shipping Depth	20 cm
Shipping Height	8.6 cm
Shipping Weight	2 kg
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	35 °C
Compatibility Information
Designed For	The dock is only compatible with qualified LAN enabled laptops (please check the LAN port on your machine): Lenovo ThinkPad A285 20MW, 20MX Lenovo ThinkPad A485 20MU, 20MV Lenovo ThinkPad L13 20R3, 20R4 Lenovo ThinkPad L13 Gen 2 20VH, 20VJ, 21AB, 21AC Lenovo ThinkPad L13 Yoga 20R5, 20R6 Lenovo ThinkPad L13 Yoga Gen 2 20VK, 20VL, 21AD, 21AE Lenovo ThinkPad L14 Gen 1 20U1, 20U2, 20U5, 20U6 Lenovo ThinkPad L14 Gen 2 20X1, 20X2 Lenovo ThinkPad L15 Gen 1 20U3, 20U4, 20U7, 20U8 Lenovo ThinkPad L15 Gen 2 20X3, 20X4 Lenovo ThinkPad L490 20Q5, 20Q6 Lenovo ThinkPad L590 20Q7, 20Q8 Lenovo ThinkPad P14s Gen 1 20S4, 20S5, 20Y1, 20Y2 Lenovo ThinkPad P14s Gen 2 20VX, 20VY, 21A0, 21A1 Lenovo ThinkPad P15s Gen 2 20W6, 20W7 Lenovo ThinkPad P43s 20RH, 20RJ Lenovo ThinkPad P52s 20LC Lenovo ThinkPad P53s 20N6, 20N7 Lenovo ThinkPad T14 Gen 1 20S0, 20S1, 20S2, 20S3, 20UD, 20UE Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XK, 20XL Lenovo ThinkPad T14s Gen 1 20T0, 20T1, 20UH, 20UJ Lenovo ThinkPad T14s Gen 2 20WM, 20WN, 20XF, 20XG Lenovo ThinkPad T15 Gen 1 20S6, 20S7 Lenovo ThinkPad T15 Gen 2 20W4, 20W5 Lenovo ThinkPad T480 20L5, 20L6 Lenovo ThinkPad T480s 20L7, 20L8 Lenovo ThinkPad T490 20N2, 20N3, 20Q9, 20QH, 20RX, 20RY Lenovo ThinkPad T490s 20NX, 20NY Lenovo ThinkPad T495 20NJ, 20NK Lenovo ThinkPad T495s 20QJ, 20QK Lenovo ThinkPad T580 20L9, 20LA Lenovo ThinkPad T590 20N4, 20N5 Lenovo ThinkPad X1 Carbon (6th Gen) 20KG, 20KH Lenovo ThinkPad X1 Carbon (7th Gen) 20QD, 20QE, 20R1, 20R2 Lenovo ThinkPad X1 Carbon Gen 8 20U9, 20UA Lenovo ThinkPad X1 Yoga (4th Gen) 20QF, 20QG, 20SA, 20SB Lenovo ThinkPad X1 Yoga Gen 5 20UB, 20UC Lenovo ThinkPad X13 Gen 1 20T2, 20T3, 20UF, 20UG Lenovo ThinkPad X13 Gen 2 20WK, 20WL, 20XH, 20XJ Lenovo ThinkPad X13 Yoga Gen 1 20SX, 20SY Lenovo ThinkPad X390 20Q0, 20Q1, 20SC, 20SD Lenovo ThinkPad X390 Yoga 20NN, 20NQ
