| Marketing Description |

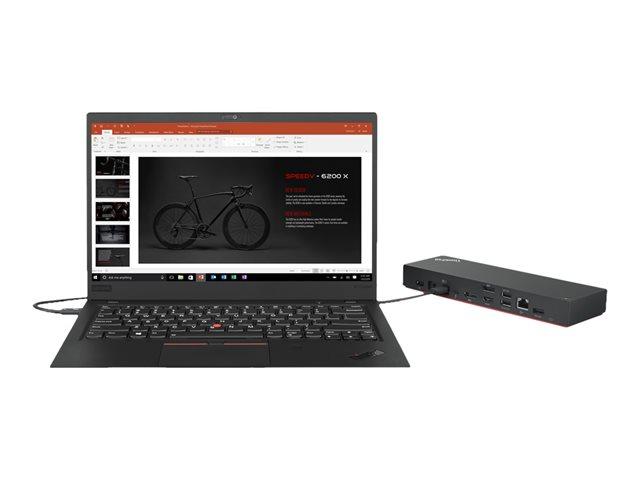

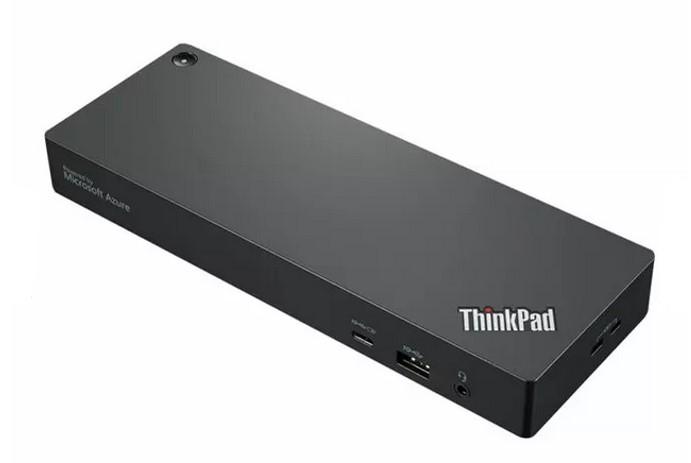

| The robust way to maximize productivity and the workspace, the Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock is the leader in the series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel Thunderbolt 4 connectivity for commercial users and a cloud-based management paradigm for IT managers. |
| Product Features |
- One cable for all your needs
- The ThinkPad Universal Thunderbolt 4 Smart Dock adds 11+ productivity-enhancing ports to your PC
- Universal dock compatibility
- Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt 4 Smart Dock
- Innovative remote management
|
| General |
| Product Type |
Docking station |
| Width |
22 cm |
| Depth |
8 cm |
| Height |
3 cm |
| Weight |
460 g |
| Enclosure Colour |
Black / red |
| Localisation |
Europe |
| Video |
| Max Resolution Details |
8K - 30 Hz (Single Display)
4K - 60 Hz (Quad Display (2 x DisplayPort 1.4 + HDMI + Thundebolt 4)) |
| Networking |
| Data Link Protocol |
Gigabit Ethernet |
| Expansion / Connectivity |
| Interfaces |
3 x USB 3.1 Gen 2
1 x USB 3.1 Gen 2 with Always-on charging
1 x USB-C 3.1 Gen 2
1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x Thunderbolt 4 upstream
1 x Thunderbolt 4 downstream
2 x audio / video - DisplayPort
1 x audio / video - HDMI
1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole |
| Miscellaneous |

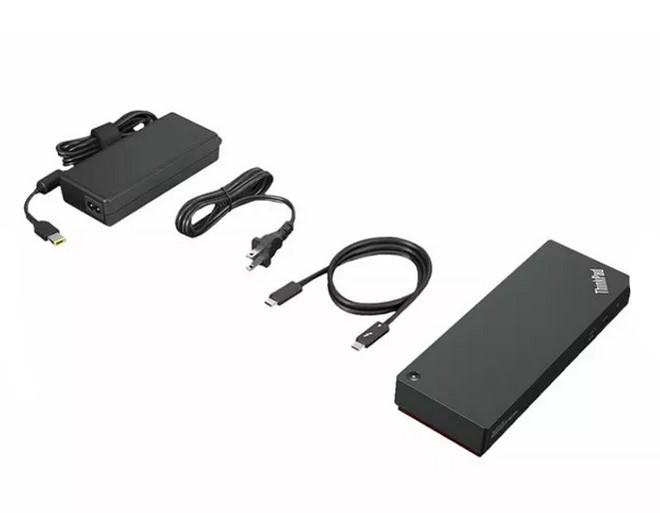

| Cables Included |
1 x Thunderbolt 4 cable - external - 0.7 m |
| Features |
Security lock slot (cable lock sold separately), 100W charging |
| Security Slot Type |
Kensington NanoSaver security slot / Kensington MicroSaver security slot |
| Compliant Standards |
NOM, FCC, ICES, cULus |
| Power |
| Power Device |
Power adapter |
| Power Provided |
135 Watt |
| System Requirements |
| OS Required |
Windows 10 64-bit Edition |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Dimensions & Weight (Shipping) |
| Shipping Width |
27 cm |
| Shipping Depth |
19.5 cm |
| Shipping Height |
8.5 cm |
| Shipping Weight |
1.23 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Compatibility Information |
| Designed For |
Lenovo ThinkPad T14 Gen 2 20W0, 20W1
Lenovo ThinkPad T14s Gen 2 20WM, 20WN
Lenovo ThinkPad T15p Gen 2 21A7, 21A8
Lenovo ThinkPad T16 Gen 1 21CH
Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX
Lenovo ThinkPad X1 Extreme Gen 4 20Y5, 20Y6
Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ
Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0
Lenovo ThinkPad X13 Gen 2 20WK, 20WL |
