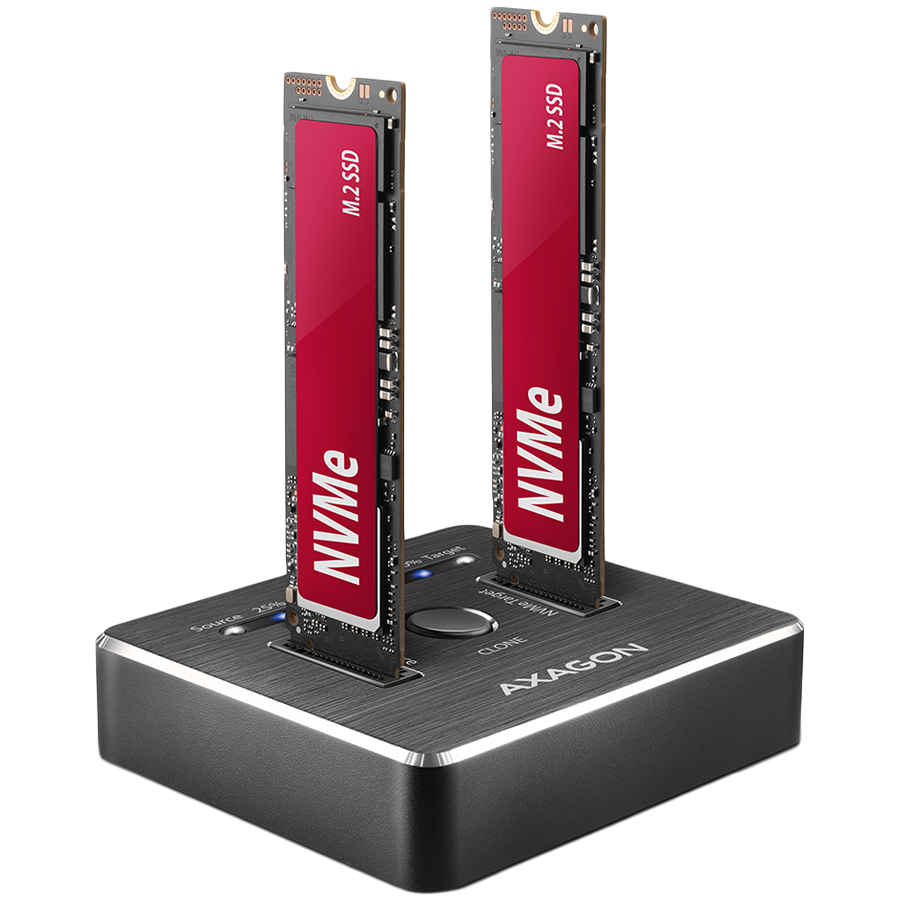

AXAGON ADSA-M2C DUAL NVMe CLONE MASTER DOCK SuperSpeed USB-C 10 Gbps docking station
| interface |
USB 3.2 Gen 2 / USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 / USB 2.0 |
| rate |
10.000 / 5.000 / 480 Mbit/s (super+ / super / high speed) |
| connector |
USB-C female / dock |
| connector |
USB-A male / cable |
| connector |
USB-C male / cable |
| cable |
25 cm |
| Output |
|
| interface |
NVMe M.2 (PCI-Express) |
| connector |
75-pin M.2 M-key |
| compatibility |
all NVMe M.2 SSD |
| total permeability |
10 Gbit/s theoretically (given by USB 3.2 Gen 2 input) |
| Supported device |
|
| M.2 22110 |
yes |
| M.2 2280 |
yes |
| M.2 2260 |
yes |
| M.2 2242 |
yes |
| M.2 2230 |
yes |
| max. disk capacity |
all, without limitations |
| Supported features |
|
| disk cloning |
yes |
| UASP |
yes |
| TRIM |
yes |
| S.M.A.R.T. |
yes |
| boot from connected disk |
yes |
| automatic installation |
yes |
| Plug and Play |
yes |
| Hot Plug |
yes |
| Other features |
|
| design |
metal |
| screwless mounting |
yes |
| indication |
6 LED |
| controls |
CLONE button - triggers disk cloning |
| controls |
power switch |
| dimensions |
68 x 68 x 17 mm |
| weight |
94 g |
| Power supply |
|
| on the bus |
no |
| through power adapter |
yes (power adapter included) |
| OS support |
|
| MS Windows |
11 / 10 / 8.1 / 8 / 7 |
| MS Windows Server |
2019 / 2016 / 2012 / 2008 |
| Mac OS |
X 10.x and higher |
| Linux |
kernel 2.6.x and higher |
