Дисплей ViewSonic TD2230, тъч дисплей, 21.5" (54.61 cm), Full HD, DP, HDMI, VGA, USB

SKU: TD2230

ID: #30352

Характеристики

Размер на екрана, inch: 21.5" (54.61 cm)

Резолюция: 1920 x 1080 (Full HD)

Тип на матрицата: IPS

Време за реакция, ms: 5ms

HDMI: 1

Display port: 1

VGA: 1

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

VIEWSONIC TD2230 22inch FHD 1920x1080 IPS 10-Point Multitouch 200nits VGA HDMI DisplayPort 2xUSB speakers bookstand style


Manufacturer	VIEWSONIC
Manufacturer Part No	TD2230

Marketing Description

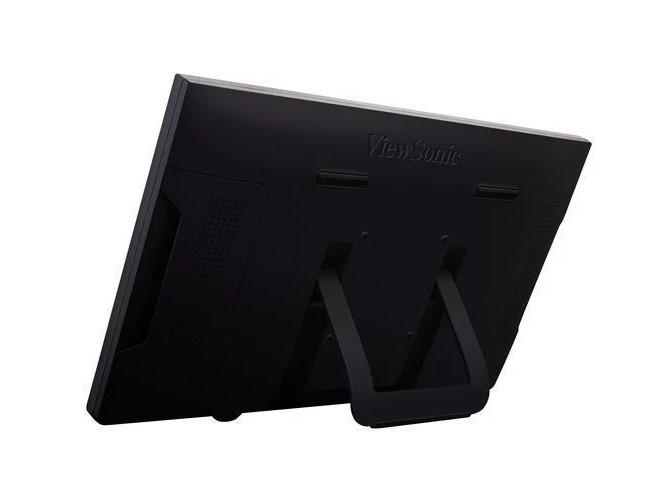

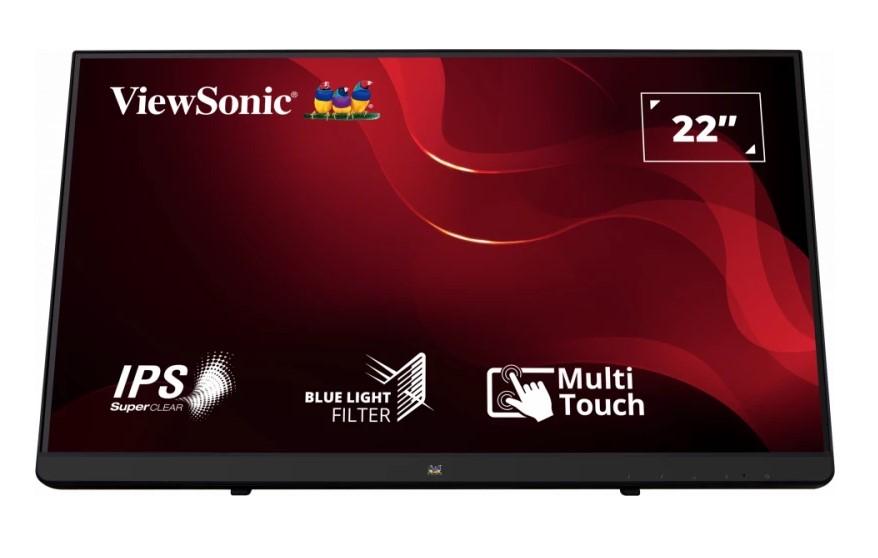

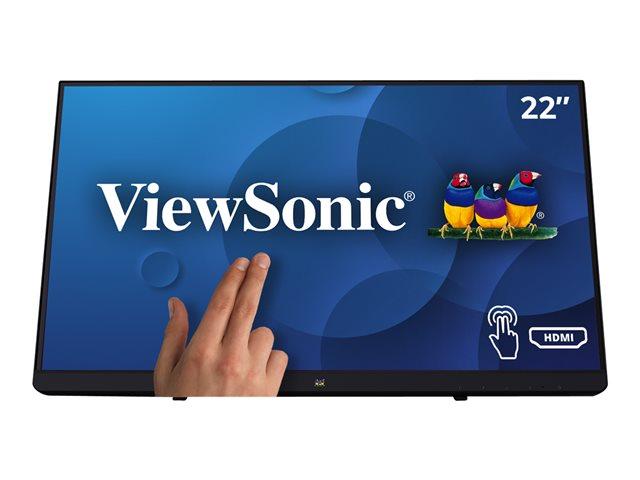

The ViewSonic TD2230 is a 22" (21.5" viewable) Full HD multi-touch display. With a SuperClear IPS-type panel and 10-point projected capacitive touch technology, this display delivers stunning front-of-screen performance with a responsive and accurate touch experience. Featuring a 7H hardness touch screen, edge-to-edge frameless design, and up to 10 simultaneous touch points, this durable display allows users to tap, swipe, pinch, and zoom with ease - perfect for retail, education, or enterprise. An advanced ergonomic bookstand design provides a full range of motion for the desktop, and a VESA-compatible mount allows for flexible mounting options on a monitor stand or wall. Future-proof connectivity options include HDMI, DisplayPort, and USB 3.0, while VGA is also available for legacy systems. ViewSonic's exclusive ViewMode feature provides intuitive presets for optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to minimize eye strain from extended viewing periods. Industry-leading warranty protection and legendary ViewSonic product quality makes this high performance multi-touch display a great long-term investment for all touch applications.
Product Features
10-point projected capacitive touch Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use. SuperClear IPS panel technology Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side. Frameless design Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs. Versatile connectivity DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices. Durable, scratch-resistant screen This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
General
Display Type	LED-backlit LCD monitor / TFT active matrix
Energy Class	Class F
Diagonal Size	22"
Viewable Size	21.5"
Built-in Devices	USB 3.0 hub
Panel Type	ADS-IPS
Aspect Ratio	16:9
Native Resolution	Full HD (1080p) 1920 x 1080
Brightness	250 cd/m²
Contrast Ratio	1000:1 / 50000000:1 (dynamic)
Response Time	5 ms (grey-to-grey)
Vertical Refresh Rate	50 - 76 Hz
Horizontal Refresh Rate	15 - 82 kHz
Horizontal Viewing Angle	178
Vertical Viewing Angle	178
Screen Coating	7H Hard Coating
Backlight Technology	LED backlight
Features	Sync on Green, HDCP, SuperClear, frameless, scratch-resistant, Flicker Free technology, Transition Minimised Differential Signaling (TMDS) technology, Blue Light Filter technology, Composite Sync, ViewMode

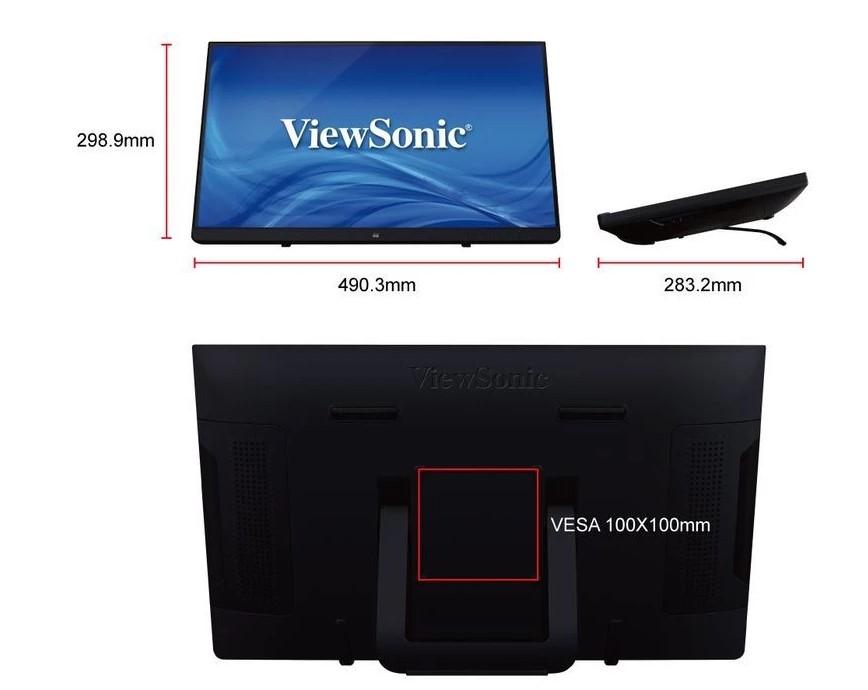

Dimensions (WxDxH)	49 cm x 4.7 cm x 29.9 cm - with stand
Weight	3.58 kg
Audio
Type	Speakers - stereo
Output Power / Channel	3 Watt
Input
Type	Touch-screen - touchscreen
Movement Detection Technology	Projected capacitive
Connectivity

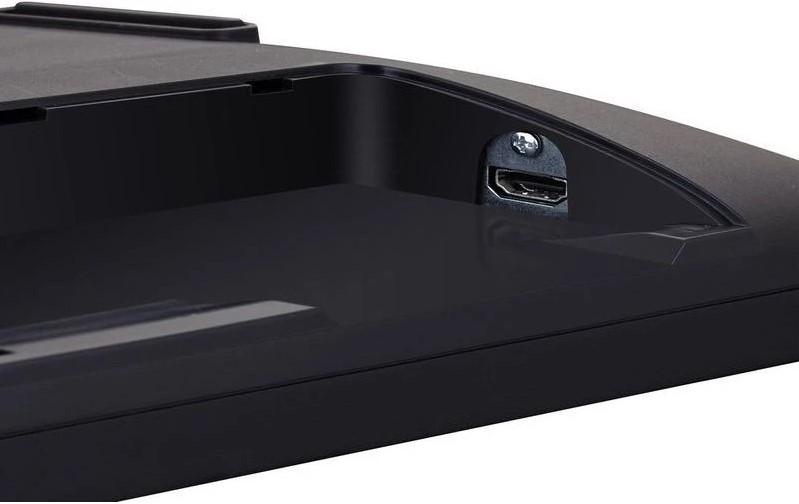

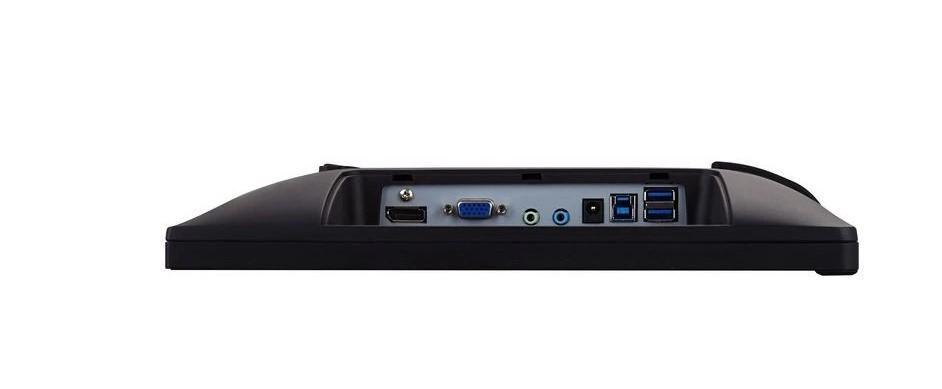

Interfaces	VGA DisplayPort HDMI (HDCP) 2 x USB 3.0 downstream (Type A) USB 3.0 upstream (Type B) Headphones (mini-jack) Audio line-in (mini-jack)
Mechanical

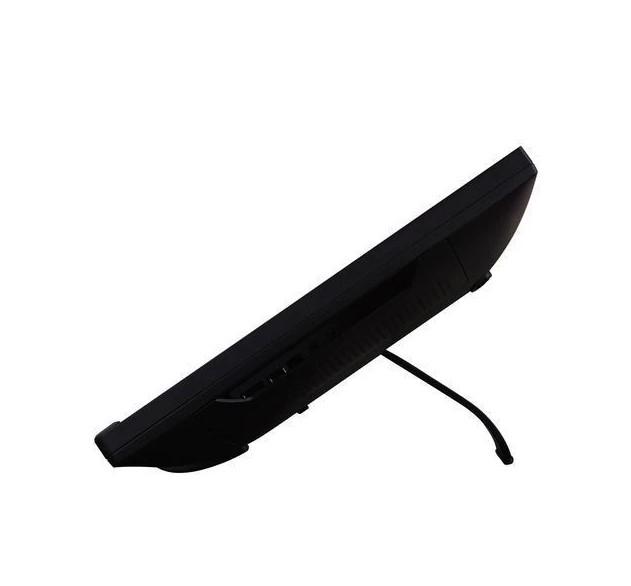

Display Position Adjustments	Tilt
Tilt Angle	-20/+70
VESA Mounting Interface	100 x 100 mm
Miscellaneous
Features	Security lock slot (cable lock sold separately)
Cables Included	1 x HDMI cable - 1.5 m 1 x SuperSpeed USB cable - 1.5 m 1 x audio cable - 1.5 m
Compliant Standards	FCC Class B certified, UL, DDC-2B, ICES-003, CCC, DDC/CI, cULus, CEL, DisplayPort 1.2, DOE, Mexico CoC
Security Slot Type	Kensington security slot
Power
Input Voltage	AC 120/230 V (50/60 Hz)
Power Consumption SDR (On mode)	19 kWh/1000h
Power Consumption (Typical)	25 Watt
Software / System Requirements
OS Required	Android 4.0 or later, Microsoft Windows 7 / 8 / 10, Linux 2.6.38 or later
Dimensions & Weight (Shipping)
Shipping Width	55 cm
Shipping Depth	11.4 cm
Shipping Height	37.1 cm
Shipping Weight	4.7 kg
Sustainability Information
EPEAT Compliant	EPEAT Bronze
ENERGY STAR Certified	Yes
ENERGY STAR Version	7.0
Manufacturer Warranty
Service & Support	Limited warranty - pick-up and return - 3 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	20 - 90% (non-condensing)
