| Marketing Description |

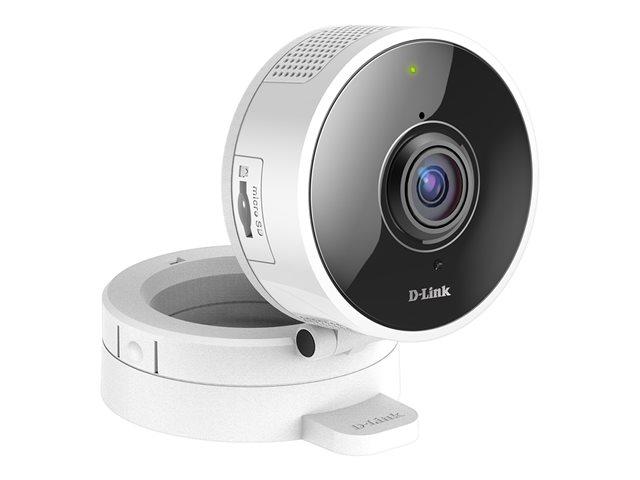

| The DCS-8100LH HD 180 degree Wi-Fi camera is a compact wireless network camera, suitable for day- and night-time environments. It features built-in night vision, motion and sound detection, so you can feel at ease, when you're away from home. |
| Product Features |
- Designed to fit your needs
The DCS-8100LH is designed with adjustability in mind: pivot, tilt and rotate to your monitoring needs, no matter where you put it. The unique fold-out lens lets you quickly adjust the angle of view - perfect for tabletop, wall and ceiling placement. Convenience features, such as built-in wireless, means you don't have to run an Ethernet cable for network access to the camera. Camera setup is also a breeze with Bluetooth 4.0.
- Comprehensive feature set
Despite its small size, the DCS-8100LH has all the features you need to monitor your home. An ultra-wide lens provides a 180-degree panoramic view, so you can monitor an entire space, using one camera. Onboard wreless N provides extended range and higher bandwidth, while still staying compatible with older wireless devices - for smooth 720p HD video streams on any device. Built-in motion detection automatically starts recording, if something is moving, and loud sounds picked up by the microphone can also trigger recording and instant notifications. You can even talk to family members, using the built-in microphone and speaker, while viewing them on your screen. Night-time monitoring is made possible with the built-in infrared LEDs, which allow for night-time viewing, so you can relax, knowing you have 24/7 monitoring of your home or small office.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: built-in speaker, two-way audio capability, built-in microphone |
| Audio Formats |
AAC |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wireless |
| Width |
6.588 cm |
| Depth |
10.322 cm |
| Height |
9.119 cm |
| Weight |
155.3 g |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MJPEG, H.264 |
| Max Digital Video Resolution |
1280 x 720 |
| Motion Detection |
Yes |
| Video Modes |
720p |
| Digital Zoom |
4 |
| Minimum Illumination |
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
5 m |
| Video Capture |
1280 x 720 @ 30 fps |
| Supported Image Formats |
JPEG |
| Features |
Motion Detection Technology, light sensor, infrared cut filter, Sound Detection Sensor, Live Streaming, Event Notification, reset button, WPA, WPA2 |
| Image Sensor |
| Type |
1 MP CMOS 1/2.7" |
| Lens Construction |
| Focal Length |
1.8 mm |
| Lens Iris |
F/2.2 |
| Min Focus Distance |
50 cm |
| Horizontal Field of View (degree) |
180 |
| Vertical Field of View (degree) |
80 |
| Interfaces |
| Network Interface |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0 |
| Network Protocols |
DHCP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, IPv4, IPv6 |
| Expansion / Connectivity |
| Ports |
USB (power only) - Micro-USB Type B |
| Supported Memory Cards |
microSD Card |
| Miscellaneous |
| Compliant Standards |
FCC, ICES, LVD, RCM |
| Power |
| Power Device |
Power adapter - external AC 120/230 V (50/60 Hz) 7.8 Watt |
| Software / System Requirements |
| OS Required |
Android, Apple iOS |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Relative Humidity (operating) |
20 - 80% (non-condensing) |
