| Marketing Description |

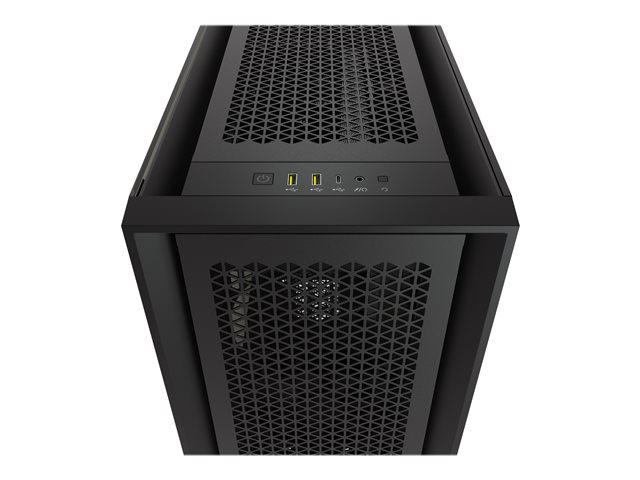

| The CORSAIR 5000D AIRFLOW is a mid-tower ATX case that shows off your PC, and not its cables. Hidden cable management and an airflow-optimized front panel make building a clean, cool PC easy, with two included CORSAIR AirGuide fans. |
| Product Features |
- Clean and cool
An optimized steel front panel delivers massive airflow to your system for maximum cooling.
- Maximum cooling potential
A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front or side and a 360mm push/pull in the roof.
- There's no replacement for displacement
The 5000D AIRFLOW isn't your run-of-the-mill, standard mid-tower ATX case. Its brilliantly engineered interior offers incredible expansion capability for liquid cooling.
- Powerful directed airflow
Equipped with two CORSAIR AirGuide 120mm fans featuring anti-vortex vanes to concentrate airflow and enhance cooling.
- Take command of your cooling
A PWM fan repeater controls the included fans, with connections for up to six in total. Reduce fan speed when you want to keep your system quiet, or increase when you want to push its performance, all from a single 4-pin PWM header on your motherboard.
- Extreme cooling
Maximum cooling potential: a spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front and a 360mm push/pull in the roof.
|
| General |
| Form Factor |
Mid tower |
| Windowed Side Panel |
Yes |
| Windowed Side Panel Material |
Tempered glass |
| Max Mainboard Size |
ATX |
| Supported Motherboards |
ATX |
| Internal Bays Qty |
6 |
| Product Material |
Plastic, steel, tempered glass |
| Colour |
Black |
| Cooling System |
Front: 120 mm fan x 1 / 2 x 140 mm fan or 3 x 120 mm fan supported
Top: fan mount / 2 x 140 mm fan or 3 x 120 mm fan supported
Rear: 120 mm fan x 1
Side: 120 mm fan mount x 3 |
| CPU Cooler Max Height |
170 mm |
| Video Card Max Length |
420 mm |
| Power Supply Max Length |
225 mm |
| System Cabinet Features |
Cable management holes, supports 120 mm radiator in rear, supports 280/360 mm radiator in front panel, supports 280/360 mm radiator in top panel, supports 360 mm radiator in right side, vertical graphic card orientation, tempered glass left panel |
| Expansion / Connectivity |
| Expansion Bays |
2 (total) / 2 (free) x internal - 3.5"
4 (total) / 2 (free) x internal - 2.5" |
| Expansion Slots |
7
2 x vertical |
| Interfaces |
2 x USB 3.0
1 x USB-C 3.1
1 x headphone/microphone - mini-jack |
| Power |
| Power Device |
No power supply |
| Specification Compliance |
ATX |
| Dimensions & Weight |
| Width |
24.5 cm |
| Depth |
52 cm |
| Height |
52 cm |
| Weight |
13.84 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 2 years |
