| Marketing Description |
| The ROG Strix 850W White Edition PSU features sleeved modular cables, a variety of decals, and is dressed to compliment the aesthetics of a white gaming rig. Massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from premium NVIDIA RTX graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios. |
| Product Features |
- ROG heatsinks
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.
- 80 Plus Gold certification
Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
- 0dB technology

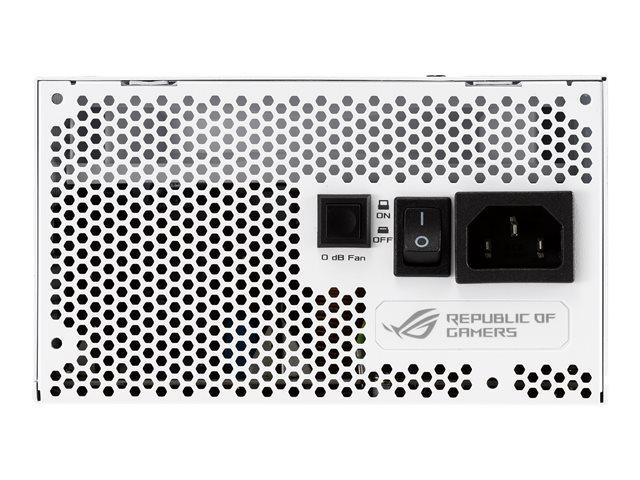

An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 40%, letting you enjoy light gaming in relative silence. Above 40% TDP, the fans automatically start up again.
- White edition design
White components can easily achieve a clean aesthetic or adopt ambient RGB colors for greater customization than their darker or painted counterparts. With a white case, modular cables, stickers, and magnets, this white edition PSU is a perfect fit for any white gaming rig.
- Fully modular cables
Keep your rig neat and tidy with fully modular cables. And if you'd like to add a dash of color to your build, the included CableMod coupon will set you on your way towards next-level customization.
|
| General |
| Device Type |
Power supply - internal |
| Specification Compliance |
ATX12V |
| PSU Form Factor |
ATX |
| Colour |
White |
| Power Device |
| Input Voltage |
AC 100-240 V |
| Power Output Connectors Details |
1 x power 24 pin ATX with detachable 4 pin section
2 x power 8 pin +12V with detachable 4 pin section
6 x 8 pin PCI Express power with detachable 2 pin section
8 x 15 pin Serial ATA power
6 x 4 PIN internal power |
| Output Voltage |
+3.3, +5, ±12 V |
| Power Capacity |
850 Watt |
| Output Current |
+3.3V - 20 A
+5V - 20 A
+12V - 70 A
-12V - 0.3 A
+5VSB - 3 A |
| Modular Cable Management |
Yes |
| 80 PLUS Certification |
80 PLUS Gold |
| Miscellaneous |
| Included Accessories |
2 x ROG badges, ROG logo magnet, 3 x ROG labels |
| Cooling System |
135 mm fan |
| Features |
Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ROG heatsink, Axial-tech fan design, 0db Technology |
| Compliant Standards |
RoHS |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 10 years |
| Dimensions & Weight |
| Width |
15 cm |
| Depth |
16 cm |
| Height |
8.6 cm |
| Weight |
1.825 kg |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
3.42 kg |
