| Marketing Description |
| Universal IT enclosure for low to medium density server and networking applications. Compact width to optimize data center space. 42U height to easily roll through doorways with essential features and functionality to meet the fundamental requirements of rack-mount IT equipment. |
| Product Features |
- APC rack systems compatible
Compatible with a variety of APC rack accessory products to provide the ability to create a complete rack system. Configure rack solutions using industry leading Schneider Electric Design Portal - Small IT Solution Designer configurator complete with verification of product compatibility and useful 3rd party equipment catalog to aid in visualizing your ideal rack solution.
- Cable access openings and panels
Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.
- Perforated front and rear doors
Perforated front and rear doors provide ample ventilation for rack-mount equipment.
- Quick release doors with spring pin design
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple spring hinge pin design.
- Removable full-height side panels

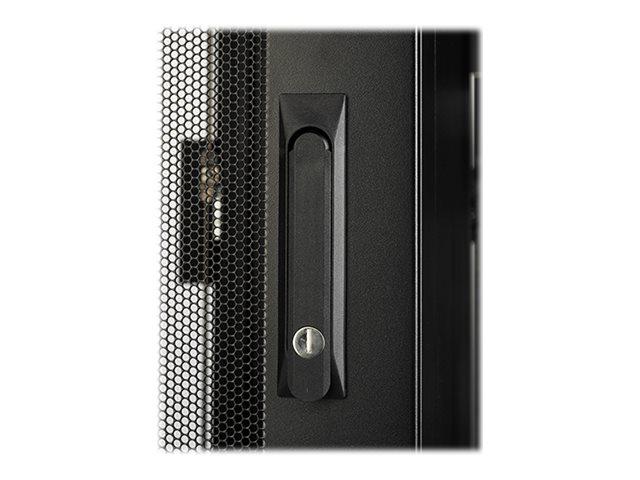

Side panels are removable for ease of access to the enclosure during equipment installation and setup. Side panels are lockable utilizing a single key that is also usable on the front and rear doors.
- Enclosure adjustment tools and hardware provided
All enclosures are provided standard with hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment.
- Adjustable mounting rails with simple alignment
The vertical mounting rails can be adjusted in 0.4-inch increments covering virtually any mounting requirement for IT equipment. Align the mounting rails with the opposite side of the enclosure by identifying the hole position used. U positions are numbered front and back for rapid installation of equipment.
- Split rear doors
Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space.
- Standard-profile castors and adjustable leveling feet from underneath
Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be adjusted using a wrench from underneath the enclosure.
- Joining hardware provided
Enclosures include pre-installed joining hardware for joining enclosures in a row and provide additional stability to the enclosure. Enclosures are pre-installed with joining brackets for joining enclosures on 600-mm centers.
- Enclosure to floor bolt-down brackets provided
Enclosure is delivered with bolt-down brackets that secure the enclosure to the pallet during shipment. These same bolt-down brackets can be utilized to bolt the enclosure to the floor at the final installation site.
- Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.
|
| General |
| Product Type |
Rack |
| Rack Type |
Cabinet |
| Package Content |
Rack levelling feet, 4 hold down brackets, side panels, front door, rear door, roof, baying hardware |
| Rack Size |
19" |
| Height (Rack Units) |
42U |
| Width |
60 cm |
| Depth |
106 cm |
| Height |
205.7 cm |
| Weight |
112.2 kg |
| Colour |
Black |
| Miscellaneous |
| Weight Limit |
1002.27 kg |
| Mounting Kit |
Included |
| Assembly Required |
Yes |
| Features |
Lockable front door, lockable rear door, keyed alike, lockable side panel, casters |
| Compliant Standards |
EIA-310-E, RoHS, UL 60950-1, REACH |
| Manufacturer Warranty |
| Service & Support |
Limited warranty: parts and labour - 5 years |
